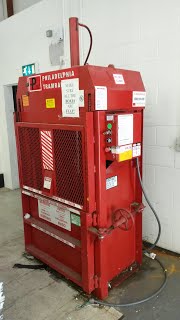

PTR 360 Vertical Downstroke Hydraulic Baler

Designed for: supermarkets, retail chains, hospitals, hotels and malls.

This small but powerful machine has been specifically engineered for applications with limited space or budget. The 360 Series has all of the important safety features that make PTR the leader in the vertical baler industry.


Specifications

Age/condition
Year:2005
Dimensional data
Baler dimensions:Height: 95.5" (2426 mm)
Width: 45" (1143 mm)
Depth: 34" (864 mm)
Feed height:32" (813 mm)
Baler chamber:Height: 28" (711 mm)
Depth: 24" (610 mm)
Load opening:Height: 19" (483 mm)
Width: 37" (940 mm)
Bale size
Height:30" (762 mm)
Width:36" (914 mm)
Depth:24" (610 mm)
Weight:100 to 250 lbs (45 to 113 kg)
Performance characteristics
Cylinder Bore:3" x 1.75" (76 x 44 mm)
Rod Stroke:32" (813 mm)
Motor:3 hp (2.2 kW)
Cycle Time:31.5 sec
Systems Pressure:1600-2100 psi (11.0-14.5 MPa)
Platen Force:11,300 lbs (50 kN)
Control Voltage:110-120 VAC
Electrical Motor:3 phase
208 / 230 / 460
